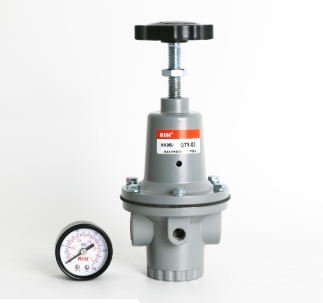

regulator QTY

Item Number:Regulator QTY

Model: QTY-08 /-10 /-15 /-20 /-35
Size: SUPPORT CUSTOMIZATION
Color: AS photo show
Weight: Details Please Contact With Our Business Manager
Dimension: Details Please Contact With Our Business Manager
MOQ: 1

regulator QTY series
Max.RATED FLW:750L/min 1800L/min3000/5000/7000L/min
pressure adjustable range:1Mpa
opening temperature range:-5~+55℃
thread Size: G3/8 G1/2 G3/4 G1

The pressure reducing valve is an essential component of pneumatic control valves; its primary function is to reduce and stabilize the air source pressure to a predetermined value, thereby enabling the control valve to receive stable pneumatic power for regulation and control purposes. The QTY pressure reducing valve is particularly suitable for pressure regulation in large-diameter pipelines: 1. For ease of operation and maintenance, this valve is typically installed vertically on a horizontal pipeline; 2. During installation, care should be taken to ensure that the flow direction of the medium within the pipeline aligns with the direction indicated by the arrow on the valve body. Rui heng Pneumatic provides comprehensive selection guidance, quotation services, and sales support for QTY air pressure reducing valves.
